BINS & VATS WASHERS

BINS & VATS WASHERS

One or two-door washing machines for large containers

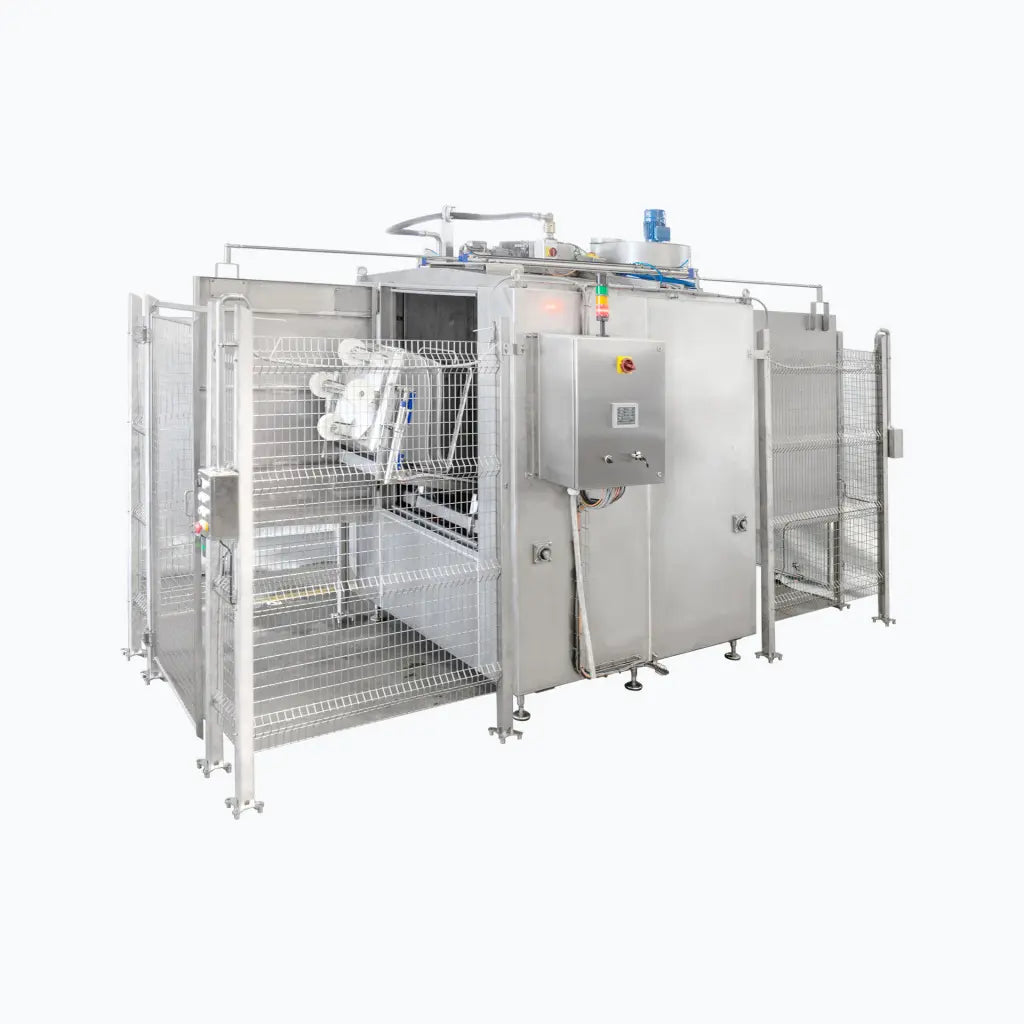

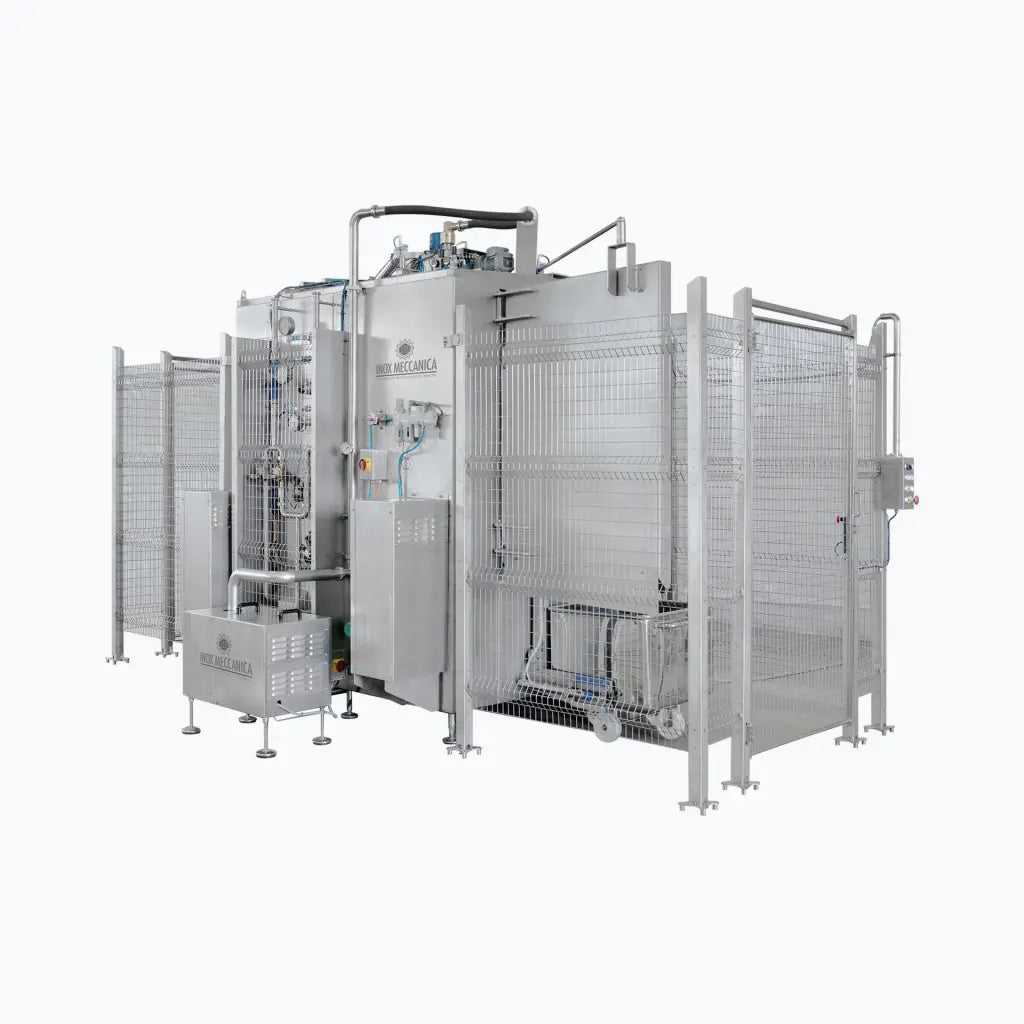

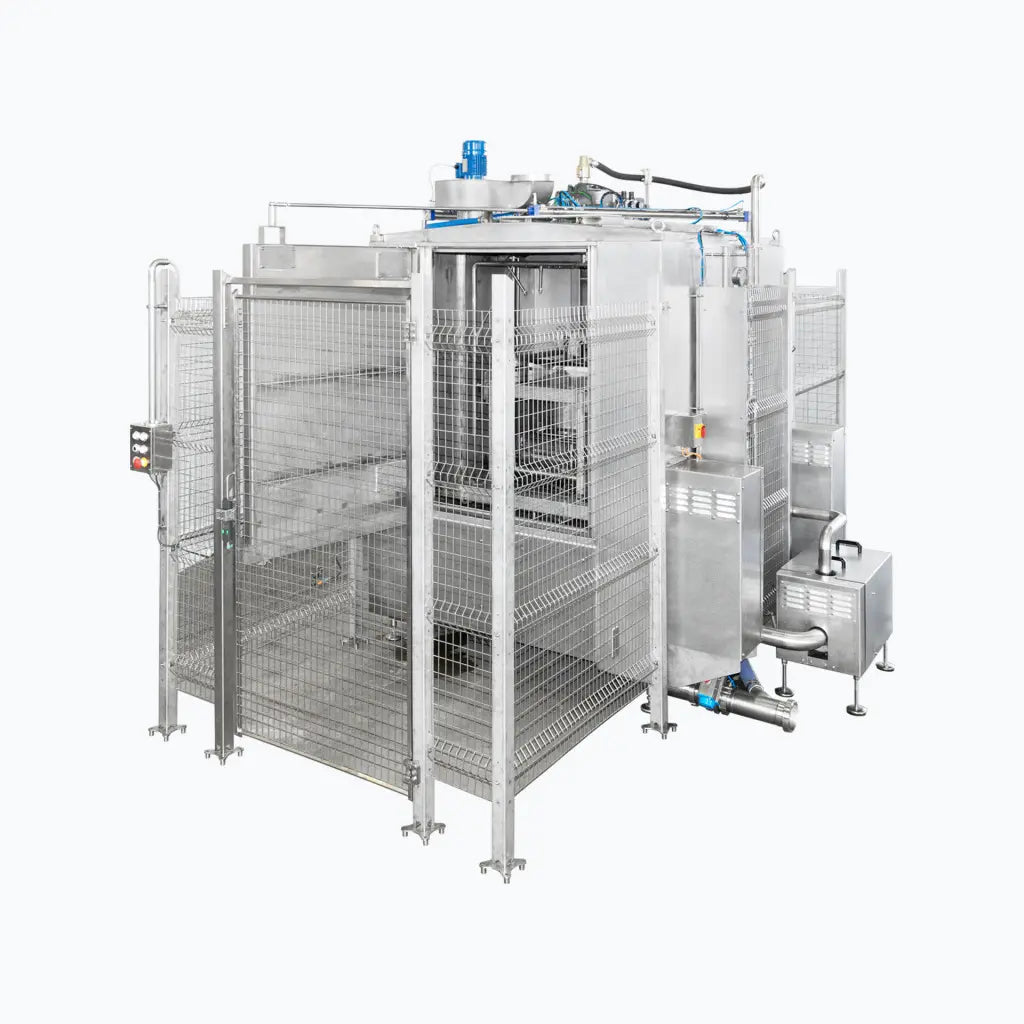

This is a machine designed for washing large containers for stowing and transporting food products. It is custom-made for the size of the container that is being washed, and it can also either be produced in a single-door and double-door version. This keeps the product inlet and outlet areas clearly separated, which minimises contamination.

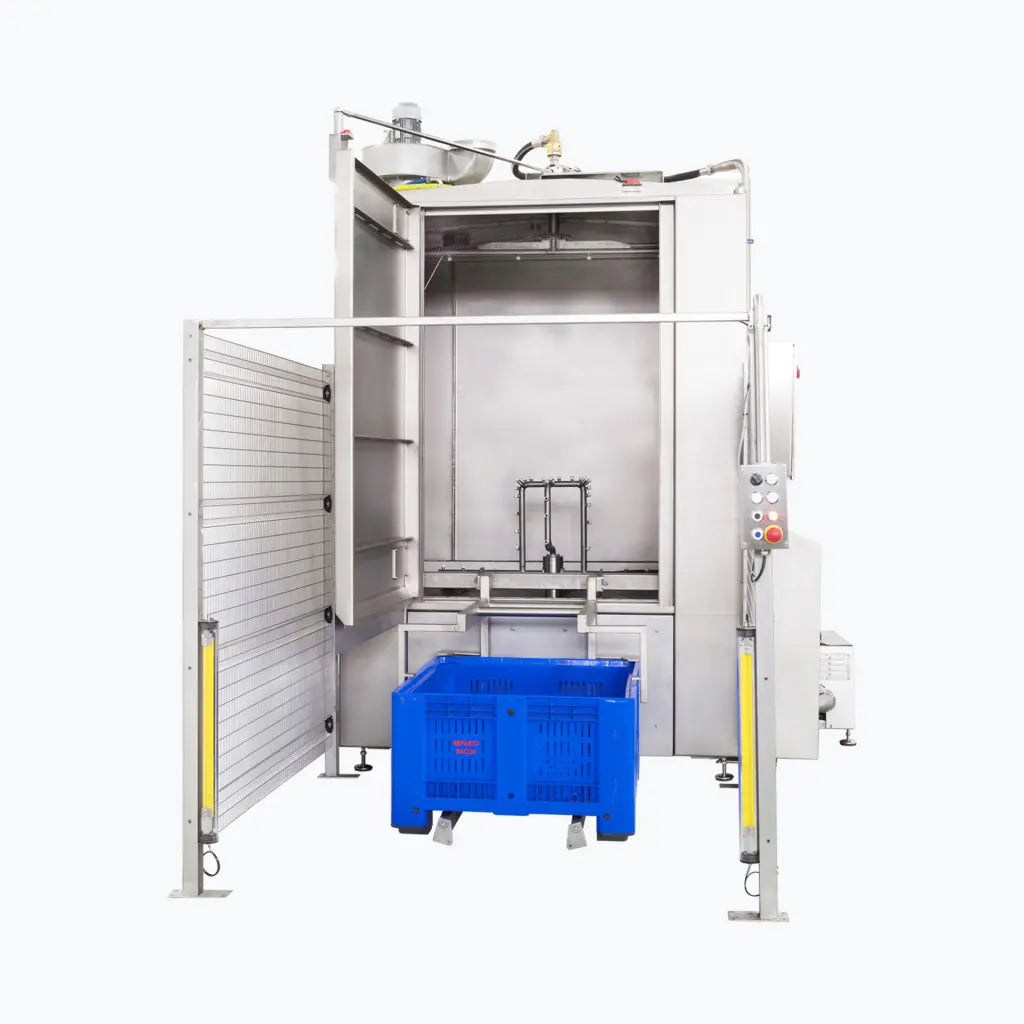

The machine consists of a washing cabin, which is equipped with a form system for picking up and lifting the container, a rotating washing ring and a second rinsing ring. Inside the cabin, in the lower part, there is a tank filtering, collecting, and heating water.

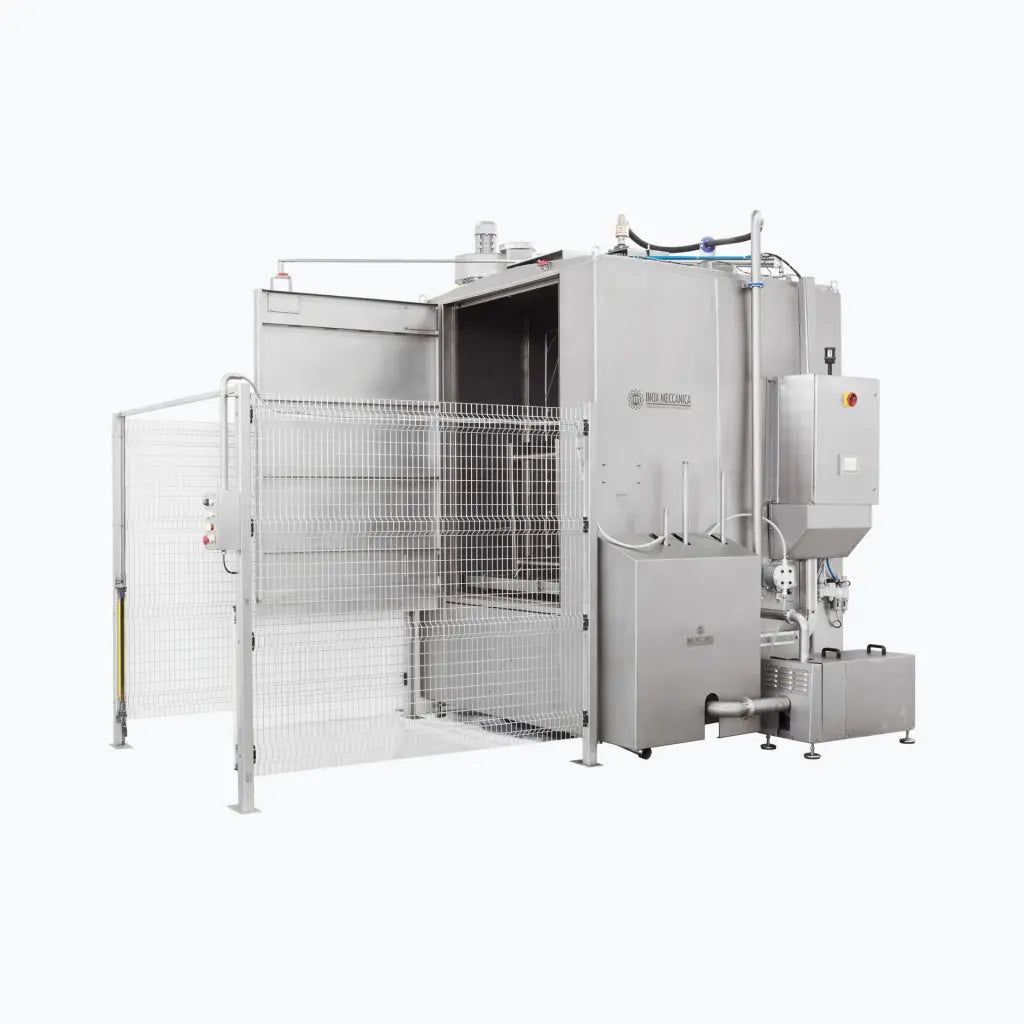

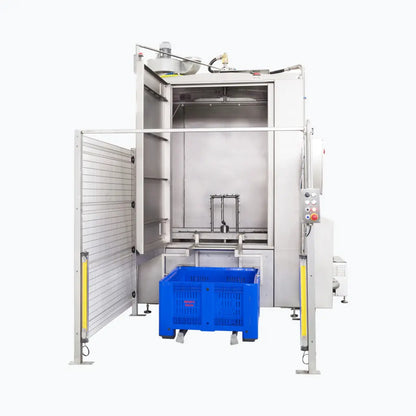

The loading door of the machine is operated by a pneumatic actuator. The loading station is within an area delimited by special safety guards, which ensures a safe working environment for operators. During this process, a photocell barrier system verifies the absence of an operator passing through during container loading and unloading. Heating is done via. disposable steam (the maximum steam pressure must be 5 bar), which using a special nozzle, brings the water contained inside the tank to the temperature set on the operator panel. The pump has a stainless-steel body along with Impeller and Viton seals and is located on one side of the machine.

Want to know more?

If you would like more information about any of our machinery, or to book a demonstration, please contact our Technical Sales Team by emailing info@trunet-group.com, by calling +44 (0)1530 411275 or by clicking "Request a quote" below.

Download brochure Request a Quote

View full details

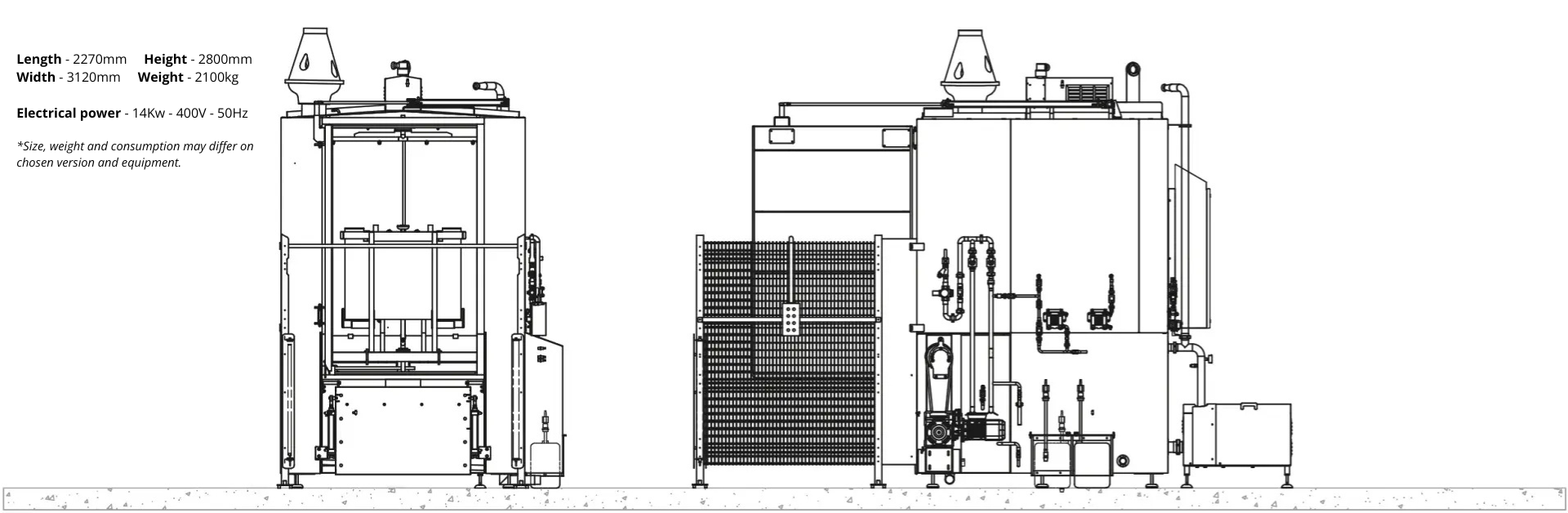

Technical data and layout

Features

  • Acoustic insulation
  • Reduced water consumption
  • Lower energy consumption
  • Reduced use of detergents

  • 01.

    Washing Station


    The nozzles dedicated to washing, are positioned to ensure that the surface of the container, is hit from different angles and for as long as possible

  • 02.

    Rinse


    The rinse water is recovered inside the tank below and used to perform the initial prewash of equipment

  • 03.

    Detergent dosage


    The dosing system is completely made by Inox Meccanica and managed by a special software made by our specialised technicians

  • 04.

    Connectivity


    The filter goes into action whenever it detects a pressure difference at the inlet an outlet of the system. The pressure difference and thus the desired degree of cleanliness can be set by the touch screen

Details

Technology

  • Structure in stainless steel with thick insulated panels to prevent heat dispersion
  • Customised washing programs
  • Washing programs deigned to achieve maximum energy efficiency
  • Responsible dosing of chemical solutions to protect the environment and operators involved in cart and frame washing operations
  • Strong savings in energy, water and detergent consumption
  • Significant reduction in maintenance time and costs
  • Advanced systems for controlling and monitoring working conditions and any alarms or anomalies encountered during machine operation

Applications

Bins and vats washing systems are automatic and designed to meet any production requirement, according to the highest quality standards

Features

  • Stainless steel structure
  • Selected raw materials of the highest quality
  • Choice of materials meeting high pharmaceutical standards
  • Technologically advanced system for fume extraction

Sectors

  • Meat industry
  • Poultry

  • Washable equipment

    With this type of washing machine it is possible to wash large containers for storing and transporting food products.

  • 200 LT BINS

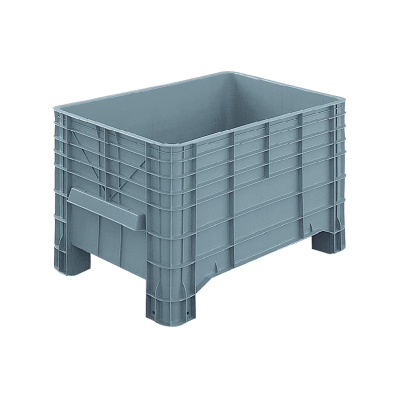

  • PLASTIC VAT

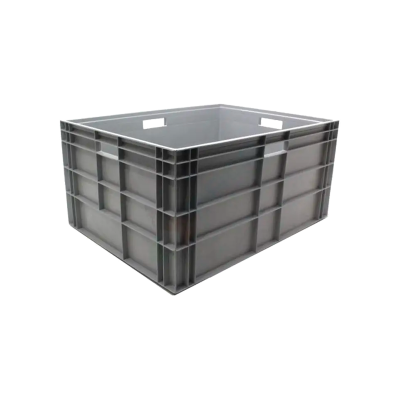

  • PLASTIC VAT

This is a team at your service to implement guidelines that will innovate food equipment washing processes.

Inox Meccanica are convinced that to improve technologies relating to washing processes and machines. To meet the needs of and the requirements of the food market, resources, technical potential, specific knowledge and, above all, the ability to ‘step into the shoes of others’ to solve the practical problems of potential customers.

This is why the Washing Solution Team has been created. The mission is the constant and progressive improvement of washing solutions and processes in line with the growing need for perfectly sanitised equipment, the reduction of resources being used (such as water, energy, and chemicals) and safeguarding the environment and operator safety.

In this team there are engineers, chemists, hygienists, customers, and suppliers who help Inox Meccanica achieve their goals. On the other hand, industrial washing is now a ‘multi-disciplinary science’ that requires many different skills that we want to implement internally and externally.

The Washing Solution Team logo is a symbol of the commitment to designing and manufacturing washing machine that are getting increasingly more geared to the needs of customers.
